How to accurately determine the Inner, Outer, and Mean Diameters of O-Rings
In the world of mechanical engineering and sealing systems, precision is everything. A poorly positioned or incorrectly sized O-Ring can compromise the entire system, leading to leaks, failures, or costly maintenance. For this reason, more and more professionals rely on the O-Ring calculator by OringOne, a tool designed to easily determine inner diameter, medium diameter, and outer diameter of O-Rings, as well as the internal, medium, and external length (circumference) of the O-Ring.
Why O-Rings dimension calculation is essential
Many underestimate the importance of accurately knowing O-Ring dimensions. In reality, every engineering project requires:
- Inner Diameter: necessary for correctly positioning the O-Ring in its groove;
- Medium Diameter: useful for proper O-Ring positioning and groove design;
- External Diameter: essential to avoid interference with other components and ensure compliance with design tolerances.
With the calculator, you simply enter a few parameters and instantly obtain all values, fully aligned with ISO standards (ISO 3601). This saves valuable time and significantly reduces design errors in O-Rings engineering and seal design.

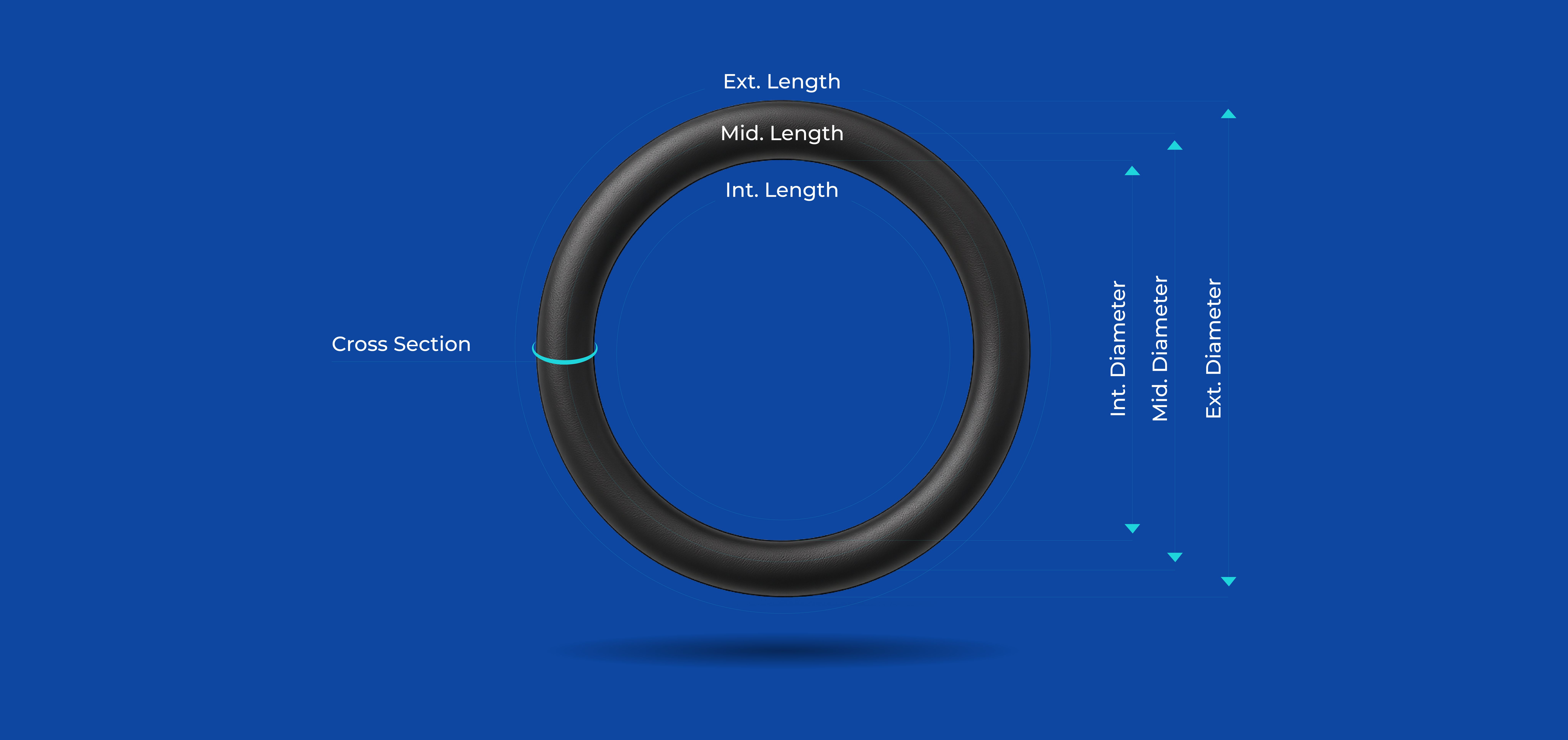

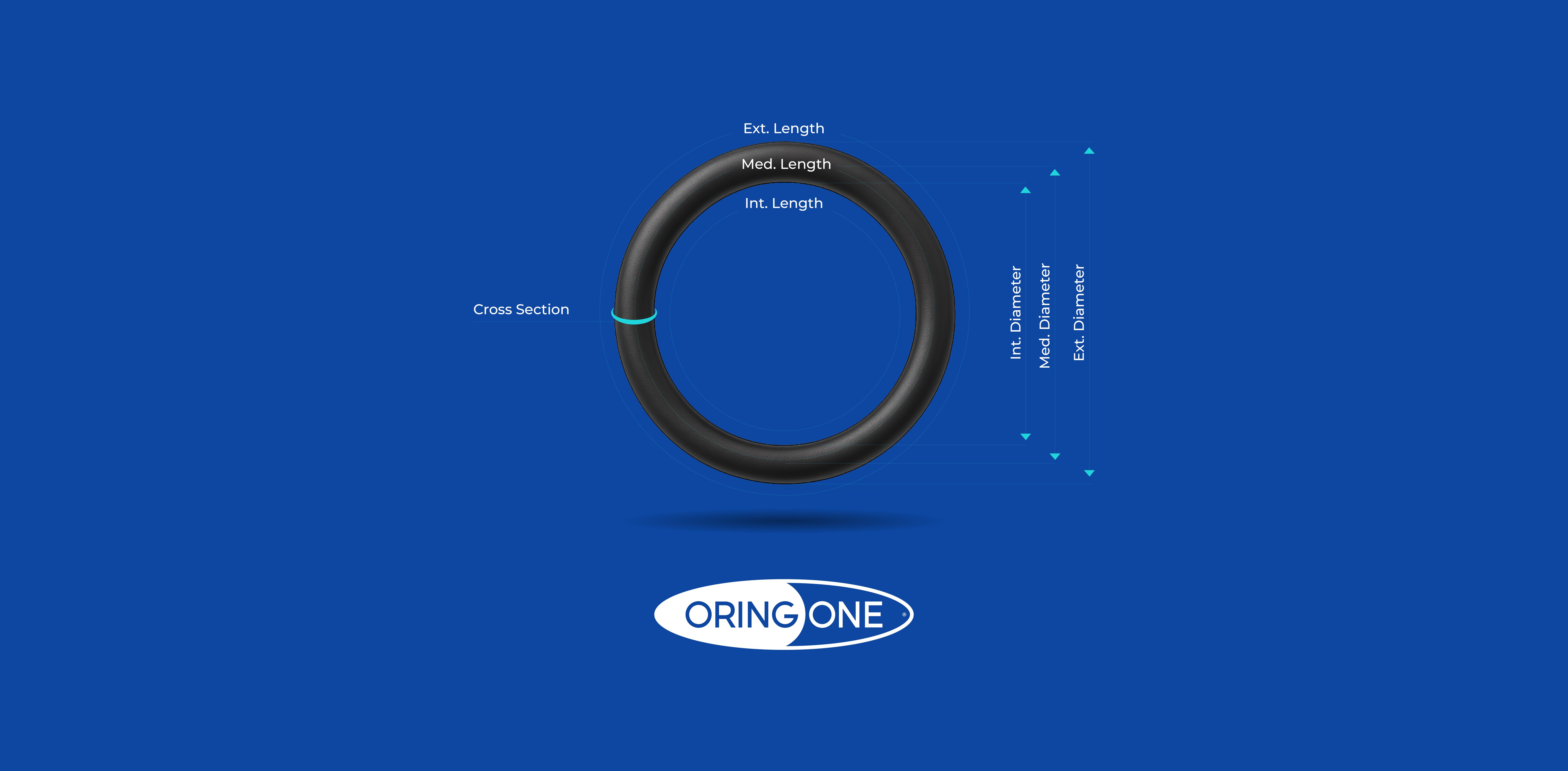

Beyond diameters, one of the most important aspects of O-Ring design is the development, i.e., the circumference of the seal. Understanding these values is crucial to ensure proper sealing performance and correct installation.
- Internal Length – represents the inner circumference of the O-Rings. It ensures correct fitting into the groove without forcing or deformation.
- Medium Length – calculated along the mean diameter, halfway between the inner and outer dimensions.
- External Length – represents the outer circumference of the O-Ring, used to check interference with surrounding components and ensure shape stability under pressure.
Accurately calculating the O-Ring’s internal, medium, and external length is just as important as measuring its diameters because it directly impacts sealing efficiency, durability, and system reliability. With the tool, these values are obtained quickly and accurately, eliminating manual errors and complex measurements.
Complete Range of Oringone O-Rings
Our product range includes O-Rings in all sizes and materials, designed for every industrial application.
Ideal for precision systems, electronic devices, and small-scale fluid handling, available in diameters ranging from 1 mm to approximately 199 mm. These high-precision O-Rings are produced in our EZTRAfactory, ensuring ISO 3601-1 tolerances and consistent quality.
Designed for heavy industrial applications such as oil & gas, automation, and energy systems, these custom O-Rings can be manufactured without dimensional limits. Cross-section size is selectable, and materials are certified to ensure optimal performance.
O-Rings materials: Choosing the right compound for every application
An effective O-Ring seal depends not only on dimensions but also on material selection. OringOne offers a complete range of elastomer compounds:
- NBR, HNBR, VMQ, EPDM, FKM, CR, FEPM for standard applications.
- FFKM EZTRA® for demanding operating conditions, including high and low temperatures, aggressive chemicals, food & beverage environments, and medical applications.
The EZTRA® line is produced in our advanced EZTRAfactory, enabling the manufacturing of micro- to macro-scale high-performance O-Rings with advanced quality control.
Industrial applications of OringOne O-Rings
Oringone O-Rings are not just simple sealing components: they are critical elements in the proper functioning of many systems and industries.
They are essential in high-pressure fluid systems, pumps, valves, automotive and aerospace applications, as well as oil & gas and energy sectors, and even sensitive industries such as biomedical and food processing.
In all these applications, precise O-Ring sizing and the correct O-Rings material selection can make the difference between a reliable system and one prone to failure or malfunction.
How the O-Ring Calculator simplifies your work
Using the O-Ring Calculator allows you to work with maximum safety and precision. It not only drastically reduces the risk of design errors but also saves valuable time by eliminating manual calculations and trial-and-error measurements.
Whether you are working with small O-Rings, large seals, standard components, or high-performance elastomers, accurately knowing diameters and circumferences (O-Ring development) is the first step toward ensuring system efficiency and long-term durability.
With the calculator, you obtain fast, reliable, and standards-compliant results, improving the overall quality of your engineering projects.
Try the O-Ring Calculator now
Don’t leave anything to chance: discover the ideal dimensions for your O Rings and test different O-Ring configurations directly online with our tool.
